Key Specifications
(Sidebar depths are accurate for the Twin 6000 and Twin Exclusive 6800. Others use different heights but the same step size)

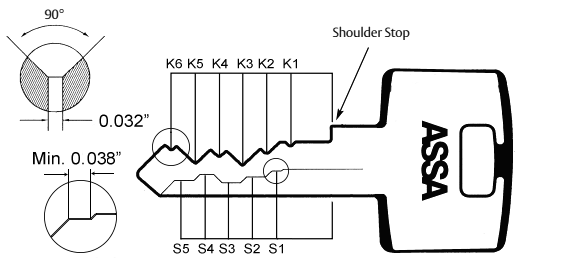

Spacing
| Position | Space from shoulder | |
|---|---|---|
| K1 | 0.2638" | 6.70mm |
| K2 | 0.4134" | 10.50mm |
| K3 | 0.5630" | 14.30mm |
| K4 | 0.7126" | 18.10mm |
| K5 | 0.8622" | 21.90mm |
| K6 | 1.0118" | 25.70mm |
| S1 | 0.3386" | 8.60mm |
| S2 | 0.4882" | 12.40mm |
| S3 | 0.6378" | 16.20mm |
| S4 | 0.7874" | 20.00mm |
| S5 | 0.9370" | 23.80mm |

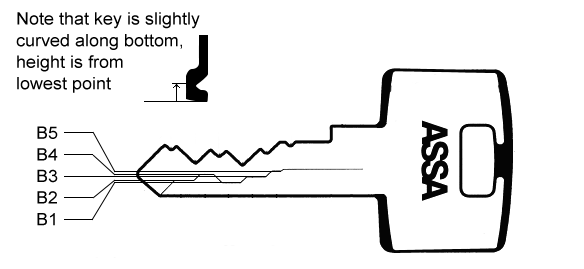

Cuts
| Cut | Total height from key bottom | |
|---|---|---|
| B1 | 0.0787" | 2.00mm |
| B2 | 0.0948" | 2.50mm |
| B3 | 0.1181" | 3.00mm |
| B4 | 0.1378" | 3.50mm |
| B5 | 0.1575" | 4.00mm |
| 1 | 0.1587" | 4.03mm |
| 2 | 0.1823" | 4.63mm |
| 3 | 0.2059" | 5.23mm |
| 4 | 0.2295" | 5.83mm |
| 5 | 0.2531" | 6.43mm |
| 6 | 0.2768" | 7.03mm |
| 7 | 0.3004" | 7.63mm |
| 8 | 0.3240" | 8.23mm |
| 9 | 0.3476" | 8.83mm |
Pin sizes
| Pin | Height | |
|---|---|---|
| Keypin 1 | 0.3503" | 8.90mm |
| Keypin 2 | 0.3267" | 8.30mm |
| Keypin 3 | 0.3031" | 7.70mm |
| Keypin 4 | 0.2795" | 7.10mm |
| Keypin 5 | 0.2559" | 6.50mm |
| Keypin 6 | 0.2322" | 5.90mm |
| Keypin 7 | 0.2086" | 5.30mm |
| Keypin 8 | 0.1850" | 4.70mm |
| Keypin 9 | 0.1614" | 4.10mm |
| Master pin 1 | 0.0236" | 0.60mm |
| Master pin 2 | 0.0472" | 1.20mm |
| Master pin 3 | 0.0708" | 1.80mm |
| Master pin 4 | 0.0944" | 2.40mm |
| Master pin 5 | 0.1181" | 3.00mm |
| Master pin 6 | 0.1417" | 3.60mm |
| Master pin 7 | 0.1652" | 4.20mm |
| Master pin 8 | 0.1889" | 4.80mm |
| Driver pin A | 0.1575" | 4.00mm |
| Driver pin B | 0.1969" | 5.00mm |
| Driver pin C | 0.2362" | 6.00mm |
| Driver pin D | 0.2756" | 7.00mm |
MACS = 5
Pin diameter = 0.1142" / 2.90mm
Sidebar
Entire sidebar = 0.0945" / 2.40mm tall
Fence = 0.0118" / 0.30mm thick
| Cut | A | B | ||
|---|---|---|---|---|
| 5 | 0.0020" | 0.05mm | 0.0807" | 2.05mm |
| 4 | 0.0217" | 0.55mm | 0.0610" | 1.55mm |
| 3 | 0.0413" | 1.05mm | 0.0413" | 1.05mm |
| 2 | 0.0610" | 1.55mm | 0.0217" | 0.55mm |
| 1 | 0.0807" | 2.05mm | 0.0020" | 0.05mm |
